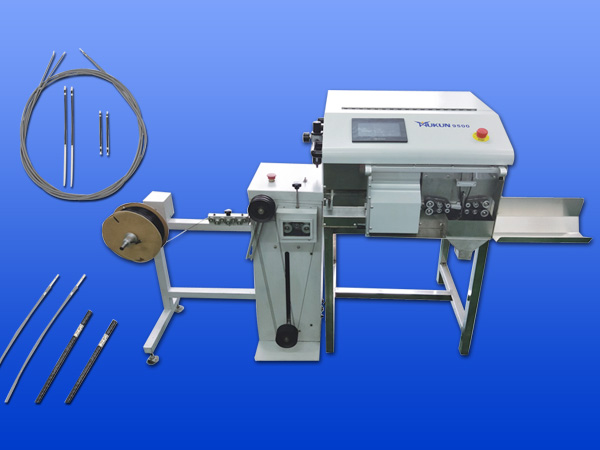

    Automatic cutting machine Hukun9500

    Automatic cutting machine Hukun9500


    The company's main antenna front-end and back-end automation equipment
    Product consultation
    • Product Details
    • Technical Parameters

    No.

    Product name


    Application function

    Maximum annual output

    1

    Automatic terminal machine

    Hukun6000


    This machine is a fully automatic cutting, end, testing and immersion tin machine. It realizes fully automatic production of products through intelligent control system, machine vision system and robot integrated operation system. It is easy to operate and has high product pass rate. An automatic device essential for the production of antenna harnesses.

      180

    2

    Automatic immersion tin machine

    Hukun6100


    This machine is a fully automatic control of coaxial cable processing automation. Its function is mainly automatic cutting of coaxial cable and double-end automatic immersion tin. It is mainly used in antenna wire harness manufacturing enterprises. It realizes simple operation through human-machine interface, with strong function, wide compatibility and high product straight-through rate.

     150

    3

    Automatic double head terminal machine

    Hukun7000 3.jpg

    This machine is a fully automatic control coaxial cable processing automation. This equipment realizes automatic automatic cutting machine, double-end automatic terminal machine riveting, automatic performance testing, automatic appearance inspection automatic machine. High quality products are achieved through a full computer control system.

    80

    4

    Fully automatic FPC bonding equipment

    Hukun8000 4.jpg

    This equipment provides a fully automated device capable of accurately positioning safe and high-efficiency production in the NFC antenna production process; it is a combination of manufacturing technology, machine, motion control, machine vision, robot integration, lean and many other advanced technologies. Automation equipment.

        The device realizes the functions of automatic feeding, automatic tear film, automatic visual positioning, FPC automatic suction, robot automatic fitting, automatic network analyzer testing, automatic appearance detection, etc., which improves production efficiency.

    50


    Technical Parameters

    Model

    HK9500

    Stripping machine size (length, width and height mm):

    680X640X400(excluding hopper, shelf)

    Wire feeder size (length, width, height, mm):

    780X310X800

    Total Weight:

    100KG

    Full load power:

    1.0KW

    Power & air pressure:

    AC220V 50/60Hz & 0.4~0.6MPa

    Wire processing length:

    20mm~9999mm

    Wire processing diameter:

    0.8mm~2.0mm

    Line length machining accuracy:

    ±0.3mm

    Stripping processing accuracy:

    ±0.1mm

    Single cycle time (line length 100mm as an example):

    3.6S/PCS (each line increases by 100MM, CT increases by 0.1S)

    Other data

    Other functions

    Medium stripping

    Equipment processing capacity:

    1000PCSx22 hours x 26 days = 572K / month

    Equipment processing flexibility:

    0.81/1.13/1.37/1.78

    Equipment operation difficulty:

    1 to 6 to 10 shifts per person

    Machine warranty time:

    One year (excluding consumables)

    After sales time

    7x24 hours service
